Cable Pulling Mesh Grips

Name: Cable Pulling Mesh Grips
Brand: HEMAKUL CABLE GRIPS LLP
Price: 500 INR
Availability: InStock

Price 500 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Cable Pulling Mesh Grips Specification

Product Type
Cable Pulling Grips

Insulation Material
Plastic

Color
Transparent

Warranty
1 year

Usage & Applications
Industrial

Features
Good Quality

Cable Pulling Mesh Grips Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
500 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Australia, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Central America, North America

Main Domestic Market
All India

Cable Pulling Mesh Grips About

During the past 17 years, we have specialized ourselves to manufacture, export and supply Cable Pulling Mesh Grips. Due to their hassle-free installation, these grips are suitable for braiding in the cables that have already been laid. Manufactured by our experienced professionals using optimal quality raw materials and avant-garde techniques, the provided grips are also rigorously checked on set quality parameters to ensure their optimum strength. The offered Cable Pulling Mesh Grips are available for clients in several lengths, diameters and strengths at marginal prices.

Features:

Flexible
Easy installation
High load bearing ability
Scratch and cut resistance

Product details

Diameter	6-10 mm
Lattice Length	600 mm
Part No	HEK 10
Permissible Workload	2.2 kn
Total Length	700 mm

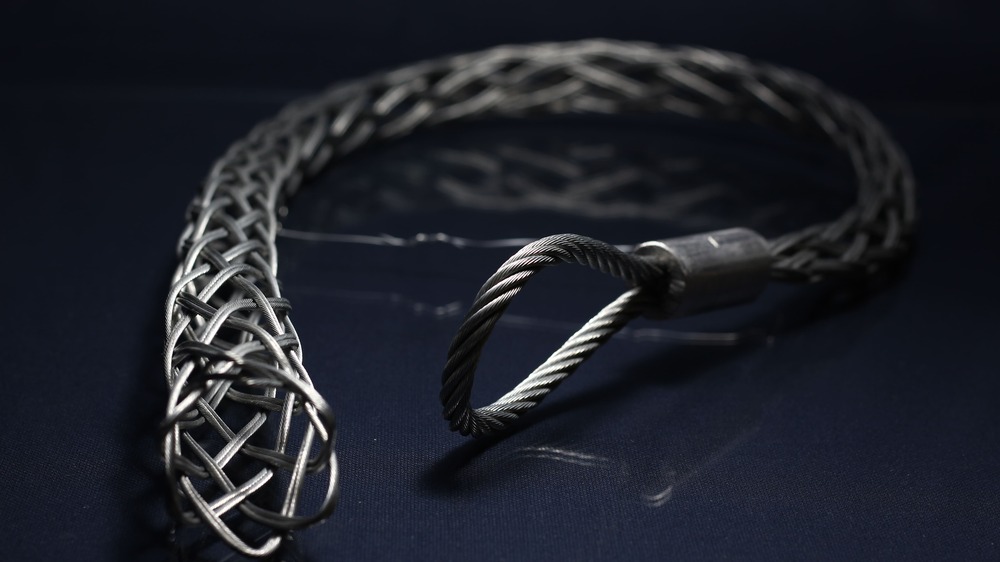

Cable Pulling Grips are used to braid- in cables that have already been laid, without the need of freely accessible end. They can be fitted to the cables at any disused point by planning it around the cable and then loading it together.

Full specifications are given in the table below.

Part No	Cable diameter (mm)	Permissible workload with a 3 times higher security load (KN)	Mesh length, dimension L1, approx, (mm)	Total length Dimension L2, approx (mm)
HEK 10/L	6 - 10	2.2	600	800
HEK 15/L	10 - 15	3.4	600	800
HEK 20/L	15 - 20	6.8	600	800
HEK 25/L	20 - 25	6.8	1000	800
HEK 30/L	25 - 30	8.1	1250	1200
HEK 40/L	30 - 40	11.7	1250	1500
HEK 50/L	40 - 50	16.0	1500	1500
HEK 60/L	50 - 60	16.0	1500	1800
HEK 70/L	60 - 70	21.3	1500	1800
HEK 90/L	70 - 90	27.9	1500	1800
HEK 110/L	90 - 110	34.9	1500	1850
HEK 130/L	110 - 130	34.9	1500	1850
HEK 160/L	130 - 160	42.7	1500	1900
HEK 200/L	160 - 190	49.8	1500	1900

Superior Design and Material

Crafted with high-quality plastic insulation, our mesh grips strike the right balance between durability and flexibility. The transparent material allows for easy monitoring, ensuring that correct placement and usage can be visually confirmed during industrial applications.

Extensive Size Range for Versatility

The cable mesh grips are available in lengths from 600 to 1850 millimeters, accommodating a broad spectrum of industrial cable installation requirements. Their round conductor shape and adaptable fit make them highly versatile for various cable sizes and types.

Reliable Warranty and Support

We stand behind our products with a standard 1-year warranty, offering peace of mind to industrial operators. Our transparent cable pulling grips are manufactured in India, ensuring high production standards and prompt support for exporters, suppliers, and users.

FAQ's of Cable Pulling Mesh Grips:

Q: How are Cable Pulling Mesh Grips used during industrial cable installations?

A: Cable Pulling Mesh Grips are attached to the end of cables, allowing secure and even distribution of tension while pulling cables through conduits or ducts in industrial environments. This prevents cable damage and improves installation efficiency.

Q: What are the main benefits of choosing transparent, plastic-insulated mesh grips?

A: The transparent, plastic insulation provides clear visibility for inspection and positioning, while offering good electrical insulation and flexibility. This enhances safety and convenience during application.

Q: When should I use a mesh grip with a length between 600 and 1850 mm?

A: Mesh grips within this length range are ideal for medium to large industrial cables that require secure pulling over considerable distances. Select the appropriate length to match the size and weight of the cable for optimal performance.

Q: Where can these cable pulling mesh grips be sourced?

A: These mesh grips are manufactured and supplied from India by reputable exporters, manufacturers, and suppliers. They can be ordered directly for domestic use or for international export, based on your project needs.

Q: What is the process of installing a cable pulling mesh grip?

A: Simply slide the mesh grip over the cable end, ensuring a snug fit, then secure the pulling eye or attachment point. The round design simplifies alignment and the transparent material permits easy inspection.

Q: Why choose this product for industrial cable pulling tasks?

A: Our cable pulling mesh grips offer reliable grip strength, flexibility, and quality construction, backed by a 1-year warranty. They ensure safer, faster, and more effective cable pulls, reducing operational downtime and minimizing cable damage risks.
