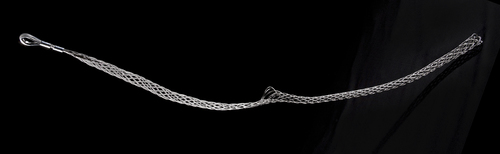

Cable Pulling Grips

Name: Cable Pulling Grips
Brand: HEMAKUL CABLE GRIPS LLP
Price: 500 INR
Availability: InStock

Price 500 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Cable Pulling Grips Specification

Conductor Shape
Round

Product Type
Cable Mounting Grips

Length
600-700 Millimeter (mm)

Application
Industrial

Conductor Material
Other

Insulation
Noninsulated

Weight
Lightweight

Locking Type
Double weave

Install Type
Manual

Features
Flexible mesh sleeve

Tensile Strength
High

Color
Silver

Size
Medium

Cable Type
Heavy duty

Material
Galvanized steel wire

Operating Temperature
-20°C to 80°C

Diameter
Varies by model

Usage & Applications
Cable installation

Cable Pulling Grips Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
50 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Western Europe, Asia, Australia, Middle East, Central America, South America, Eastern Europe, North America, Africa

Main Domestic Market
All India

Cable Pulling Grips About

Owing to the assistance of our professionals from the past 17 years, we have been able to offer Heavy Duty Mounting Grips. Available in various lengths, diameters and other specifications, the offered grips are ideal to braid over the cables to assure their resistance from abrasion, cuts and other impacts. These grips are manufactured by our adroit professionals using pristine quality basic materials and latest techniques in tandem with international quality standards. Our precious clients can purchase the provided Heavy Duty Mounting Grips from us at rock bottom prices.

Features:

Easy to install
High tensile strength
Durable
Superior finish

Open type / lace up cable mounting grips cab used for braiding in cables or hoses very easily after they have already been laid and at any desired point of the outer cable jacket. The advantage of these grips is that cables that have already been connected do not have to be disconnected in order to attach this transaction relieving device.

Full specifications are given in the table below.

Part No	Cable diameter (mm)	Permissible workload with a 3 times higher security load (KN)	Mesh length, dimension L1, approx, (mm)	Total length Dimension L2, approx (mm)
HL 6	4 - 6	0.6	100	275
HL 9	7 - 9	1.1	120	290
HL 12	9 - 12	1.3	135	340
HL 15	12 - 15	2.1	180	390
HL 19	15 - 19	2.6	220	450
HL 25	19 - 25	2.6	275	510
HL 30	25 - 30	4.0	350	610
HL 40	30 - 40	5.8	370	660
HL 50	40 - 50	8.0	490	800
HL 60	50 - 60	8.0	500	810
HL 70	60 - 70	10.6	520	860
HL 90	70 - 90	13.9	580	950
HL 110	90 - 110	17.4	650	1130
